How Patek Philippe Defines Chronometric Precision

|Filip Biczak

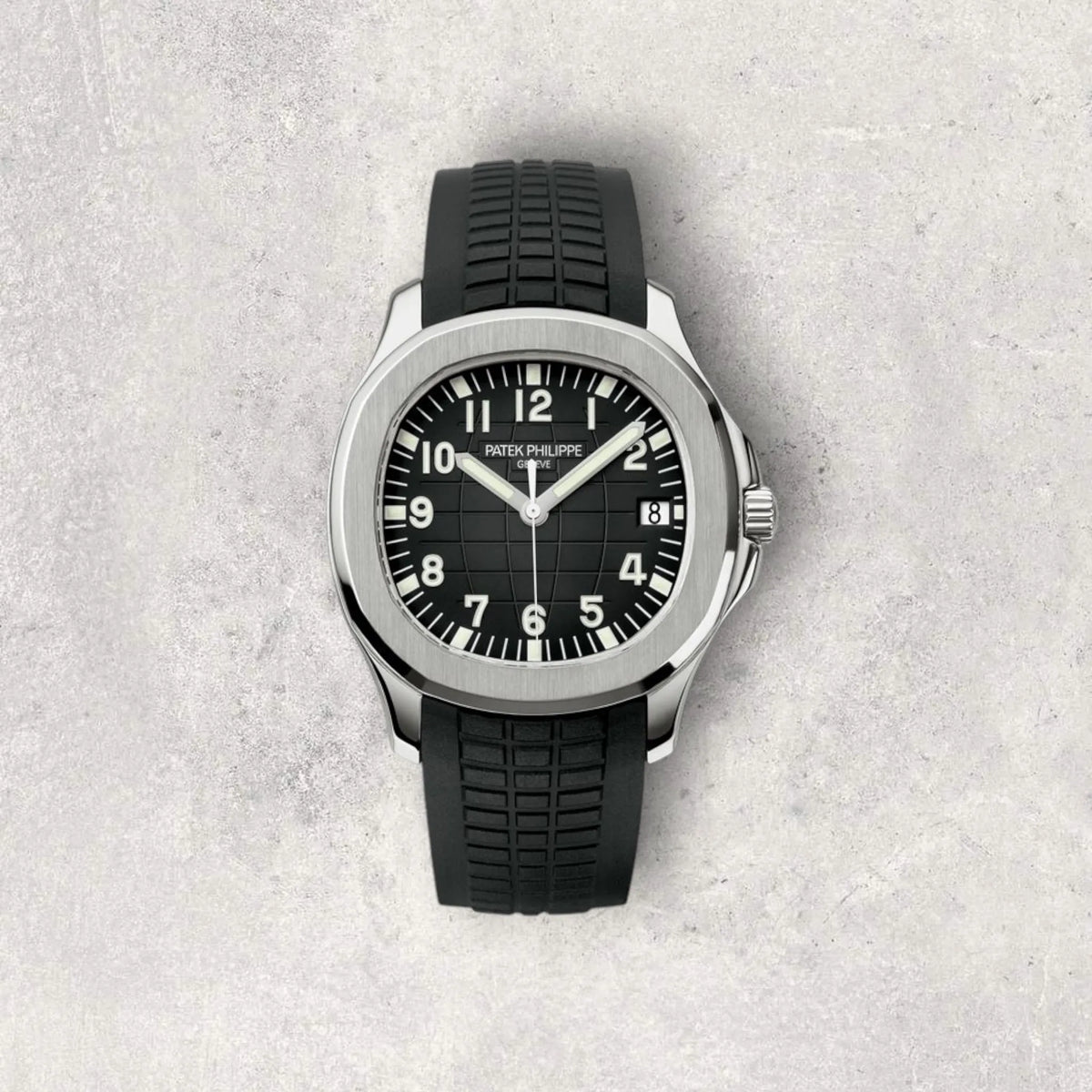

Patek Philippe Aquanaut 5167A-001 steel case with black embossed dial, the reference used to illustrate the Patek Philippe Seal's chronometric standard

Patek Philippe defines chronometric precision through its own in-house standard, the Patek Philippe Seal, rather than through third-party certification alone. Introduced in 2009 to replace the Geneva Seal, the mark tests the finished, cased watch rather than the movement alone, and imposes tighter daily rate tolerances than the Swiss COSC chronometer test. This guide covers what the Seal requires, the free-sprung balance and silicon spring architecture behind it, which references push precision furthest, and how that standard extends into Patek's steel sport watches. Bizak & Co. sources Patek Philippe to order; the Aquanaut collection lists the configurations we can seek.

Last reviewed on September 28, 2026 by Filip Biczak. Prices are dated observations, not quotes.

What is the Patek Philippe Seal?

The Patek Philippe Seal, introduced in 2009, is the manufacturer's own quality standard, applied to the complete cased watch rather than to a movement in isolation. It sets a rate tolerance of -3 to +2 seconds a day for calibres up to 20 mm in diameter and -2 to +2 seconds a day for larger calibres, measured on the wrist rather than on a laboratory test stand, and it also covers power reserve accuracy, hand-setting and winding efficiency. Alongside the rate standard, the Seal specifies eight traditional finishing techniques, including hand-applied anglage and Geneva stripes, so a Seal-marked watch is certified on both timekeeping and finishing.

How does the Patek Philippe Seal differ from COSC?

COSC, the Swiss chronometer testing body, tests an uncased movement in five positions and at three temperatures over 15 days, certifying a daily rate deviation of -4 to +6 seconds. The Patek Philippe Seal tests the finished watch as sold, including the influence of the case, dial and hands on the regulating organ, to a tighter tolerance than COSC's. This is why a Patek Philippe watch does not carry a separate COSC certificate: the manufacturer's own standard supersedes it. Details of Swiss chronometer testing generally are published by the Federation of the Swiss Watch Industry.

What is a Gyromax balance and a Spiromax silicon spring?

Chronometric stability starts at the regulating organ. Patek Philippe uses a free-sprung Gyromax balance across its modern calibre families, which removes the index regulator and its sliding contact point; a watchmaker instead adjusts small gold weights on the balance rim to set the rate, a method with fewer parts to shift or wear over time. Paired with the Gyromax balance is the Spiromax balance spring, made of silicon with a Breguet-style overcoil terminal curve formed in a single manufacturing step. Silicon is non-magnetic, lighter than a traditional alloy spring, and holds its geometry consistently as it breathes, which helps the movement keep a similar rate across different amplitudes. Most current Patek Philippe calibres run this balance and spring combination at 28,800 vibrations an hour.

Feature What it does for chronometry
Gyromax free-sprung balance Removes the index regulator's sliding contact, improving long-term rate stability
Spiromax silicon spring Non-magnetic, lighter than metal alloy, consistent geometry across amplitudes
Vertical clutch (chronograph calibres) Starts and stops the chronograph seconds hand without a jump, and without disturbing the going train's amplitude
Patek Philippe Seal testing Certifies the cased, finished watch rather than the movement alone

Which Patek Philippe reference pushes precision display furthest?

The 5470P-001, a platinum hand-wound monopusher chronograph introduced in 2022, displays elapsed time to a tenth of a second on a central hand. It runs a split-train architecture: the going train that keeps ordinary time runs at the standard 4 Hz, while a separate chronograph train runs at 5 Hz (36,000 vibrations an hour) only while the chronograph is engaged, so the higher-frequency train does not draw down the watch's everyday rate stability or power reserve. Patek Philippe's calibre CH 29-535 PS 1/10 is documented on the manufacturer's Grand Complications collection page. It sits among Patek's most complex pieces rather than an everyday reference.

How does the annual calendar chronograph 5905P-001 balance precision and daily wear?

The 5905P-001 pairs a flyback chronograph with an annual calendar that distinguishes 30- and 31-day months, needing only one manual correction a year. Its calibre CH 28-520 QA 24H uses a column-wheel chronograph with a vertical clutch, which lets the chronograph seconds hand start and stop cleanly without the small jump a horizontal clutch can produce, and without pulling down the going train's amplitude while the chronograph runs. Patek Philippe was granted a patent for its annual calendar mechanism in 1996, according to the Fondation de la Haute Horlogerie, and the complication has since become one of the manufacturer's signature practical functions. Full specifications are on Patek's Complications collection page.

What does the world-time chronograph 5930P-001 add?

The 5930P-001 combines a column-wheel chronograph with Patek's world-time display, showing 24 time zones with a pusher at 10 o'clock that advances the city disc and hour hand together in one-hour steps. The chronograph, operated independently by pushers at 2 and 4 o'clock, uses the same vertical-clutch architecture as the 5905P-001, so engaging it does not disturb the world-time display or the going train's rate. It is a rare combination of genuine travel utility and Seal-certified chronometry in a single case.

Do Patek's steel sport watches meet the same chronometric standard?

Yes. The Aquanaut line is regulated to the same Patek Philippe Seal tolerance as the manufacturer's dress watches and grand complications; the case metal changes the price and the look, not the rate standard. The Aquanaut 5167A-001, a time-and-date model in stainless steel, runs calibre 26-330 S C with a Gyromax balance and Spiromax spring and a 45-hour power reserve, documented on Patek's 5167A-001 reference page. The Aquanaut 5164A-001 Travel Time adds a second time zone, set independently through pushers at 8 and 10 o'clock without stopping the running seconds, on the related calibre 26-330 S C FUS, to the same chronometric standard as the three-hand model.

How much do these Patek Philippe references cost?

Patek Philippe does not publish a single global retail price for every configuration, and figures move by market and by year, so the honest starting point is a dated, sourced listing rather than a fixed "retail price." On September 28, 2026, Bizak's sourced catalogue listed the following, all sourced to order.

Reference Case metal / dial Bizak catalogue ask, Sep 28, 2026
Aquanaut 5167A-001 Steel, black dial US$104,500
Aquanaut 5164A-001 Travel Time Steel, black dial US$100,940
Aquanaut 5167R-001 Rose gold, brown dial US$121,473
Aquanaut 5164G-001 Travel Time White gold, blue dial US$177,109
Aquanaut 5968A-001 Chronograph Steel, black dial, orange strap US$166,320
Aquanaut 5968G-001 Chronograph White gold, blue dial US$135,558

Those figures describe one dated catalogue snapshot, not a market range, and will move with each watch's condition, set and year; ask for a current written quote for the exact reference through the Aquanaut collection.

What should a buyer check before paying for chronometric precision?

  • Regulation protocol. Ask whether a watch was tested cased or as a bare movement, and in how many positions; the Patek Philippe Seal tests the finished watch, which is a meaningfully different standard from an uncased-movement test.
  • Balance and spring type. A free-sprung balance and a silicon spring are more resistant to magnetism and long-term drift than an index-regulated balance with a traditional alloy spring.
  • Clutch type on a chronograph. A vertical clutch starts and stops cleanly without disturbing the going train; a horizontal clutch can introduce a small jump and a brief amplitude drop when engaged.
  • Service history and current rate. A watch that has drifted well outside its original tolerance is a service candidate regardless of how tight its factory spec once was; ask for the last service date and, where possible, a current timing check.
  • Papers and reference match. Confirm the case reference, movement number where visible, and included papers match the seller's description before comparing price against another listing.

Quick answers

What is the Patek Philippe Seal?

Patek Philippe's own quality standard, introduced in 2009, which certifies the complete cased watch to a rate tolerance of -3 to +2 (or -2 to +2 on larger calibres) seconds a day, plus eight finishing techniques, rather than testing the movement alone.

How is the Patek Philippe Seal different from COSC?

COSC tests an uncased movement over 15 days to a -4 to +6 second daily tolerance. The Patek Philippe Seal tests the finished, cased watch to a tighter tolerance, which is why Patek watches do not separately carry a COSC certificate.

What is a Gyromax balance?

A free-sprung balance used across Patek Philippe's modern calibres. Rate is set by moving small gold weights on the balance rim rather than by an index regulator, removing a sliding contact point that can wear or shift over time.

Do Patek's steel sport watches meet the same precision standard as its dress watches?

Yes. The Aquanaut line is regulated to the same Patek Philippe Seal tolerance as the manufacturer's dress and grand complication watches; case metal affects price and appearance, not the certification standard.

What does a vertical clutch do on a chronograph?

It lets the chronograph seconds hand start and stop without a visible jump and without drawing down the going train's amplitude while the chronograph runs, unlike an older horizontal-clutch design.
