Vintage Rolex Submariner Design Evolution: Which Changes Move Value (and Which Do Not)

Collectors pay for a short list of Rolex Submariner design changes, not for every footnote in the production record. The pivots that move value are the arrival of crown guards in 1959, the change from gilt to matte dials in the late 1960s, the date and Cyclops of the 1680, the sapphire crystal and 300 m rating of the 16800 in 1979, the ceramic bezel and wider case of 2008 to 2010, and the slimmer 41 mm case with the 70-hour calibres in 2020. Everything else, from Bond mythology to colour fashion, is context; the money moves on whether a watch's dial, case and bezel are original relative to those pivots. This guide sets out the timeline, explains which elements drive valuation, compares the vintage core with the current steel models, and shows how to collect for wear and for design purity at the same time. Bizak & Co. sources Submariners of every era to order; the Submariner collection lists the configurations we can seek.

Last reviewed on September 21, 2026 by Filip Biczak. Prices are dated observations, not quotes.

Which Submariner design changes actually matter to collectors?

Four changes define the eras. Crown guards, introduced on the 5512 in 1959, fixed the silhouette the Submariner still wears, and they turned the earlier guardless watches into a separate, smaller and far more expensive collecting lane. The sapphire crystal on the 16800 in 1979 ended the acrylic era and, with the 300 m rating and quickset date, made the Submariner a modern watch in everything but the aluminium bezel. The Cerachrom ceramic bezel and the broader "super case" of the 116610 in 2010 ended aluminium fade and changed the proportions. The 2020 case at 41 mm, with slimmer lugs and the calibres 3230 and 3235, walked the proportions back toward the classic look while adding the 70-hour reserve. Within each era, gilt versus matte dials, red text on the 1680, and the Maxi dial of the 16610LV are the details that separate one price band from another.

Timeline of the Submariner design pivots

The current models are on the Rolex Submariner collection page; the historical references appear regularly in the catalogues at Phillips and Christie's, which is where the reference prices for the early watches are set.

How did crown guards, sapphire and the 41 mm case change the watch?

Crown guards made the Submariner robust enough to be a daily tool watch and gave it the outline that every later reference kept. The pre-guard watches are thinner and more fragile, and their value now depends on a handful of specialists rather than the broad market. The sapphire crystal and ceramic bezel traded patina for durability: an acrylic crystal hazes and an aluminium insert fades, which collectors prize when the fade is even and original, while sapphire and Cerachrom look the same after a decade of wear. The 2020 case is the change most buyers feel on the wrist. The 116610's super case had wide lugs and broad crown guards that made a 40 mm watch wear heavily; the 124060 and 126610 are 41 mm on paper but slimmer in the lugs, so they sit flatter and look closer to the 16610 than the 116610 did.

What defines the current steel Submariner design?

Three 41 mm Oystersteel references: the 124060 no-date with the calibre 3230, the 126610LN black-dial Date with the calibre 3235, and the 126610LV with the green Cerachrom bezel and black dial, also on the 3235. All three have the 70-hour reserve, the Chronergy escapement, the Glidelock clasp and the post-2020 lug profile. Rolex's US list price for the 124060 was about US$10,050 when checked on the brand's site on September 12, 2026, with the 126610LN and 126610LV in the mid-US$11,000s. On September 21, 2026 Bizak's sourced catalogue listed the 124060 at US$15,990 brand new and US$10,415 pre-owned, the 126610LN between US$13,484 and US$15,400 brand new, and the 126610LV at US$16,830 brand new, sourced to order. The 126610LN is the direct descendant of the 16610; the 126610LV is colour allocation rather than design purity. The 124060 guide and the 126610LV guide cover the two ends of the range.

Which references define the collector core?

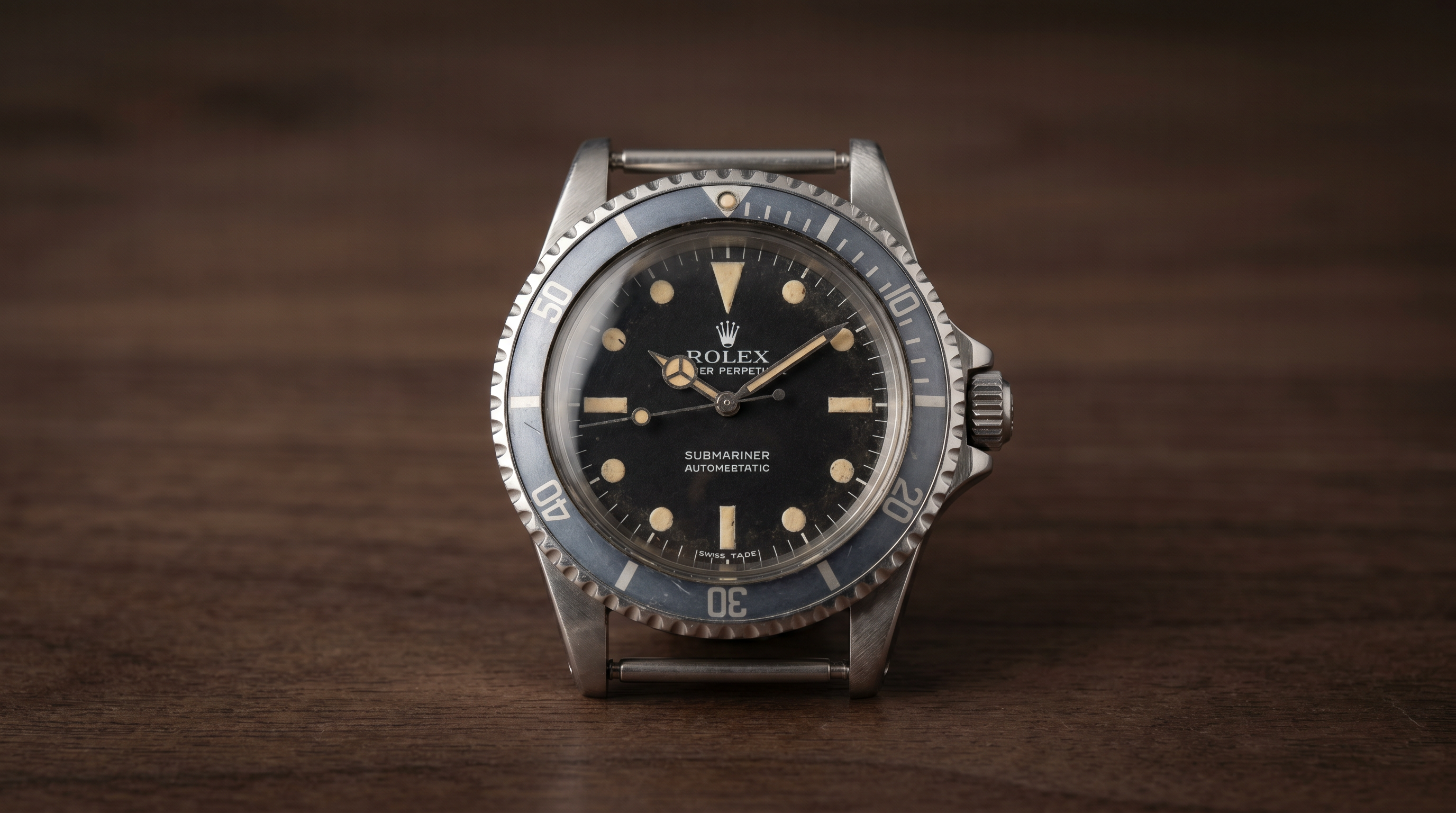

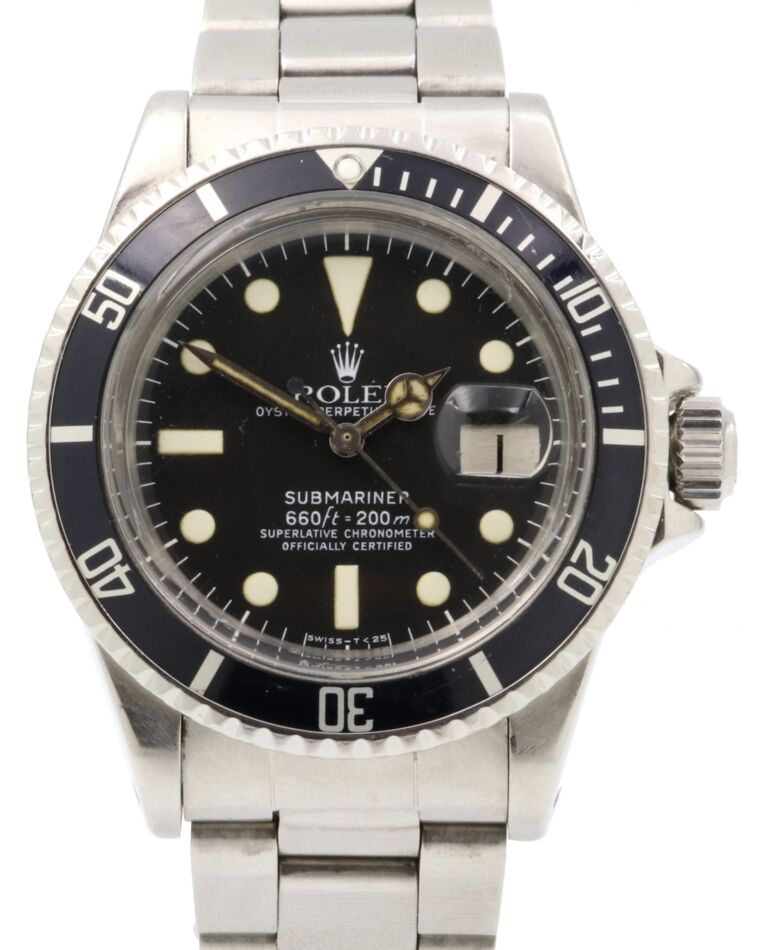

For most buyers the collector design core is the 5513, the 1680 and the 16610LV. The 5513 is the long-run no-date with acrylic crystal and aluminium insert, made from 1962 to about 1989 across gilt, matte and finally gloss dials, so one reference shows the whole arc of vintage Submariner dial design. The 1680 adds the date and the Cyclops, and its early red-text dial is the detail that collectors chase most. The 16610LV Kermit, made from 2003 to 2010, is not four-digit, but its green aluminium bezel and Maxi dial with oversized lume plots make it the bridge between vintage inserts and a modern calibre 3135 that any Rolex service centre will maintain. On September 21, 2026 Bizak's catalogue listed a pre-owned 5513 at US$8,369, a pre-owned 1680 at US$11,159 and a pre-owned F-serial 16610LV at US$18,599, sourced to order; gilt 5513s and correct Red Subs sit well above those asks. The Kermit guide covers the flat-four bezel and the other variants.

Which design elements drive valuation most?

Lume eras are a matching check rather than a value lever: radium to the early 1960s, tritium to about 1998, then Luminova and Super-LumiNova. Dial and hands should always agree. The vintage Submariner authentication guide works through each check in detail.

How do secondary premiums differ between modern and vintage eras?

Modern ceramic Submariner premiums are premiums over a living retail price: they measure the cost of skipping the waiting list and they expand or compress with production and sentiment, which is why they fell from the 2021 to 2022 peak. Vintage premiums are scarcity and originality premiums with no retail floor to revert toward, so condition is the price, and two 5513s from the same year can sell for very different sums. A modern Submariner's value is easy to read from any dealer's list; a vintage Submariner's value is only as reliable as the originality assessment behind it. The investment-grade collecting guide covers liquidity across the eras, and the Submariner price guide explains how to compare asks.

How do you collect for wearability and for design purity?

Wearability favours a modern ceramic and sapphire Submariner with a 70-hour reserve and fresh gaskets that you will actually put on. Design purity favours an unrestored 40 mm acrylic and aluminium watch with a correct dial and untouched lug lines that you will handle carefully. A coherent collection usually takes one piece from each lane, a 124060 or 126610LN alongside an honest 5513 or 1680, rather than every colour on the timeline, and it refuses refinished "bargains" that save money only until the day they are sold. The colour-bridge references, the aluminium Kermit and the ceramic 126610LV, satisfy green-bezel demand but colour is not purity; if design simplicity is the point, the 124060 wins.

When is a modern Submariner the better design choice?

When you want water resistance you can trust without a pressure test, a bezel that will not fade, a crystal that will not haze, a reserve that lasts a weekend off the wrist, and lug proportions that wear cleaner than either the super case or a fragile pre-guard watch. Vintage wins on historical resonance and mid-century proportions; it loses on tool performance, parts scarcity and service risk, and Rolex's own watch care and service pages describe the parts policy that governs older references. Choose the 126610LN for the date and the classic black look, the 124060 for the purest modern design, and the 126610LV only when colour is the point. If Submariner design is not actually the need, an Explorer or GMT-Master II may serve better, and the waitlist guide explains the retail route.

Buying checks by design era

• Four-digit (5512, 5513, 1680). Dial type must match the serial; check the depth-rating order, the Swiss line and the lume plots against the hands. Insist on an acrylic crystal and an aluminium insert with a period-correct font.
• Transitional (16800, 168000). Confirm whether the dial is matte or gloss and that it is correct for the serial; early matte examples carry the premium.
• Five-digit (16610, 14060, 16610LV). Check the bezel insert for fade and the lume pearl; on the 16610LV, confirm the bezel is original and whether it is a flat-four. Look for the engraved rehaut on watches from 2007 onward.
• Ceramic super case (116610, 114060). Check the Cerachrom edge for chips and the Glidelock for wear; the warranty card serial should match the rehaut.
• Current 41 mm (124060, 126610). Card and rehaut should match; every example is inside or near its five-year warranty; the crown at 6 o'clock and correct dial text confirm the reference.
• Every era. Sharp lug chamfers, even brushing, a bracelet without stretch and a service record or a service budget.

Our authentication process describes what we inspect before dispatch.

Quick answers

Which Submariner design changes matter most to collectors?

Crown guards in 1959, the sapphire crystal in 1979, the ceramic bezel in 2008 to 2010 and the slimmer 41 mm case in 2020. Within each era, dial, case and bezel originality relative to those pivots is what moves the price.

What defines the current steel Submariner?

Three 41 mm references, the 124060, 126610LN and 126610LV, with the calibres 3230 and 3235, a 70-hour reserve, Cerachrom bezels and the post-2020 slimmer lugs.

Which vintage references define the collector core?

The 5513 no-date, the 1680 with its early red-text dial and the 16610LV Kermit as the bridge between aluminium bezels and modern reliability.

What design element moves value most?

Dial originality. A refinished, reprinted or service dial removes most of the collector premium; case polish and a replacement bezel insert follow close behind.

When is a modern Submariner the better choice?

When you want dependable water resistance, a fade-proof bezel, a sapphire crystal, a 70-hour reserve and cleaner proportions for daily wear. Vintage wins on design purity but loses on tool performance and service risk.
