Rolex Daytona 116520: Steel Calibre 4130 Guide

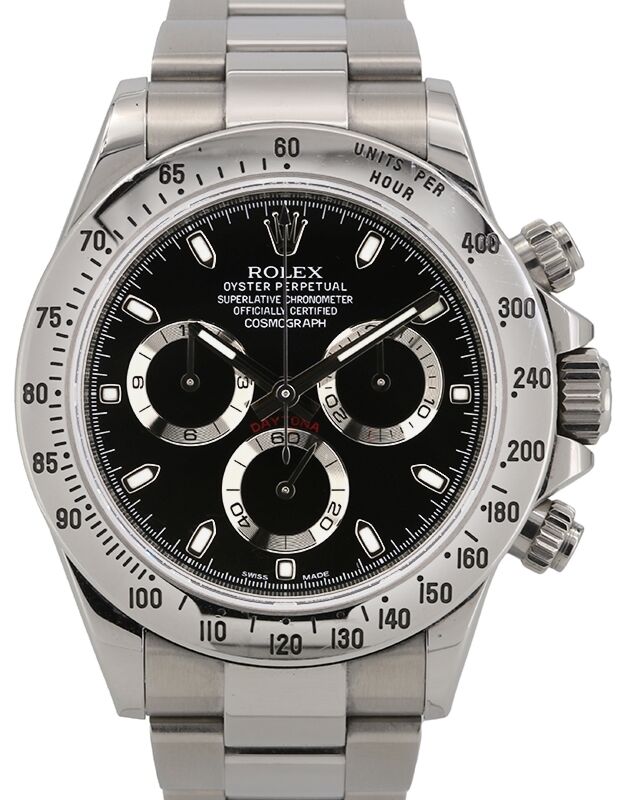

The Rolex Cosmograph Daytona 116520 is the steel Daytona made from 2000 to 2016: a 40 mm Oystersteel chronograph with an engraved steel tachymeter bezel, a sapphire crystal and Rolex's in-house calibre 4130, which has a vertical clutch and roughly 72 hours of power reserve. It was replaced by the ceramic-bezel 116500LN in 2016, so every 116520 is now a pre-owned watch. This guide covers the specifications, what the 4130 changed, how the 116520 compares with the 116500LN and the older 16520, the dial variants and the collector terms around them, dated catalogue prices and what to check before buying. Bizak & Co. sources the 116520 to order; the Daytona collection lists the configurations we can seek.

Last reviewed on October 1, 2026 by Filip Biczak. Prices are dated observations, not quotes.

Rolex Daytona 116520 specifications

Source: the Rolex Cosmograph Daytona collection page covers the current ceramic-bezel models that replaced this reference; the 116520 itself is discontinued, so its figures here come from general reference knowledge and from the watches on our own catalogue. For servicing intervals and parts policy on older references, see Rolex watch care and service.

What is the Rolex Daytona 116520 and what did calibre 4130 change?

Until 2000 every automatic Daytona used a Zenith El Primero base that Rolex heavily modified as the calibre 4030. In 2000 Rolex introduced the calibre 4130, its own movement, and the 116520 was the first Daytona built around it. The 4130 has about 290 parts against more than 400 in the older movement, a vertical clutch that keeps the chronograph seconds hand from jumping when it starts, and a longer reserve of about 72 hours. For owners the practical gains are a steadier chronograph hand, easier servicing and a watch that runs for a long weekend off the wrist. The case, bezel and dial layout stayed familiar, which is why the 116520 looks like a Daytona from any decade but wears a little more modern than the 16520.

116520 vs 116500LN vs 126500LN: steel bezel or ceramic?

The 116520 is the cheapest way into a modern, in-house-movement steel Daytona, and it has no ceramic bezel to worry about, but it does not carry the Panda nickname, which belongs to the ceramic white-dial watches. The bezel is the practical difference: ceramic does not fade or scratch, while an engraved steel bezel shows wear on the numerals.

How does it compare with the 16520? The 16520 ran from 1988 to 2000 with the modified Zenith calibre 4030 and the same 40 mm size, but no in-house movement. Collectors who want the Zenith heritage buy the 16520; buyers who want the newer movement, a more rigid bracelet and an easier service path buy the 116520. They are separate references with separate markets, and a 16520 should never be priced against a 116520 without allowing for the movement difference.

Which dial is which: black, white and the collector terms

Factory dials are black or white. Collectors use two labels for early white-dial print, "APH" and "inverted 6". Neither is an official Rolex designation. They describe small differences in how the dial text and sub-dial numerals were printed in the first production years, and watches with them are priced above standard white dials by buyers who care. Treat any such claim as something to verify: ask for macro photographs of the dial, compare them with the serial range and the card, and do not pay a premium for a label alone. Black dials have a simpler pricing story and, in our catalogue, sit below the white.

What does the Bizak catalogue list for the 116520?

On October 1, 2026 our sourced catalogue listed these configurations, all pre-owned and sourced to order.

Treat the Le Mans listing as a special or non-standard configuration until photographs and documents show what it is; it should not set your expectation of a typical factory 116520. The spread between lines reflects the dial, condition and the set. These are our asks, not market medians.

How does the 116520 wear?

At 40 mm in steel the 116520 wears as a medium-large sports chronograph with a flat dial and a bracelet that sits quietly under a cuff. The unfussy case with no Cyclops reads smaller than the numbers suggest, and it suits wrists from about 16 cm (6.3 inches) upward. The engraved bezel has a softer, more vintage look than the black ceramic of the 116500LN, and it picks up marks over time, which some owners like and others do not. The screw-down pushers add a little fiddliness when you want to time something, but they keep the water resistance at 100 m.

How much is a Rolex Daytona 116520? Prices in 2026

• Retail. The 116520 has been discontinued since 2016, so Rolex lists no current price for it. The nearest current reference is the 126500LN, whose figure is on the Rolex product page linked above.
• Secondary market. Pre-owned 116520 watches have been among the more accessible steel Daytonas for several years, with white dials and early-print variants asked above plain black ones. A full set with box, card and service history is asked above a watch-only example.
• Bizak catalogue asks. On October 1, 2026 our sourced catalogue listed black-dial examples at US$21,064, a white dial at US$24,090 and a further listing at US$18,599, all pre-owned and sourced to order.

Those figures describe what we saw on that date and will move. Ask for a dated quote for the exact watch; our Rolex price guide explains how to compare quotes.

Is the 116520 a good investment?

Discontinued steel Daytonas have tended to hold their value better than most watches, but nobody should buy one purely as a trade. The 116520 sits in a useful place: it is the end of the steel-bezel line, it has the in-house movement, and it costs less than the ceramic models. Buy the dial and condition you want to wear. If resale matters, ask for a written cash-buy assessment before you commit.

Buying a used 116520: what to check

• Reference and bezel. The bezel should be engraved steel with crisp numerals; a ceramic bezel means a different reference.
• Dial print. If an early white dial, APH or inverted-6 claim is made, ask for macro photographs and verify against the serial range and the card.
• Pushers and chronograph. Pushers should screw down and click cleanly; the chronograph hand should start, stop and reset without a jump or a stall.
• Case. Look for sharp lug edges and crisp case-side brushing; rounded edges mean polishing, and the engraved bezel is hard to restore once worn.
• Bracelet and clasp. Hold the watch by the clasp; a bracelet that sags is stretched, and the clasp should close with a firm snap.
• Service history. Ask for the last service date and pressure test; budget for a service if there is no record.
• Special dials. Le Mans, aftermarket diamond and custom dials are separate configurations; price them separately and ask for proof.

Our authentication process describes what we inspect before dispatch.

Quick answers

What is the Rolex Daytona 116520?

It is the steel Cosmograph Daytona made from 2000 to 2016, with a 40 mm case, an engraved steel tachymeter bezel and the in-house calibre 4130 with about 72 hours of reserve.

Is the 116520 a ceramic Panda?

No. The Panda nickname belongs to white-dial ceramic-bezel Daytonas such as the 116500LN and 126500LN. The 116520 has a steel bezel and is a separate reference.

What is the difference between the 116520 and the 16520?

The 16520 used the modified Zenith-based calibre 4030 and was made from 1988 to 2000; the 116520 uses the in-house calibre 4130, introduced in 2000.

What does APH or inverted 6 mean?

Both are collector terms for early white-dial print variants, not official Rolex designations. Verify any such claim with macro photographs and the serial range.

How much is a Rolex 116520?

Bizak's sourced catalogue listed pre-owned examples from US$18,599 to US$24,090 on October 1, 2026, sourced to order. Rolex lists no current price because the reference is discontinued.

Request a Daytona 116520 sourcing quote

Tell us the dial colour, preferred year range, condition and whether the card is required, plus your budget and timing, through our sourcing enquiry form. We confirm the specific watch, photographs, card and final price before you commit. Catalogue entries: 116520BLK black dial, 116520WHTZ1 white dial; browse the Daytona collection, the chronographs collection, or sell or trade your Daytona.
